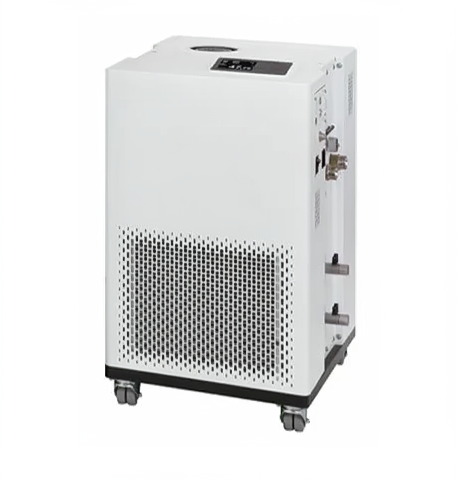

Integral IN 750 XT -45 to 220 C Process thermostat

From -90 to 320 °C: The powerful Integral XT process thermostats use the flow principle with cold oil superimposition. It allows users to use a wide temperature range with one temperature control medium. The electronically controlled, magnetically coupled eight-stage Variopump allows the optimum thermal connection of the flow rate both for pressure-sensitive consumers and for applications with high hydraulic resistance. The modular interface concept ensures maximum networking of the user processes. Features: NRTL certified to UL/CSA standards Flow system Side mounted pump connections Digital interfaces Service friendly housing Permanently mounted operation unit with colored display Optimized hydraulic system (filling volume, pressure drop, expansion volume) Significantly improved flow rates Flow control as accessory Intuitive product set up by automated tools More service friendly due to new design concept Integrated webserver via Ethernet to computer or local LAN PT100 socket and alarm contact for process control USB ports for updating and datalogging Remote control panel Command Touch (accessory) Interface modules RS232, Profibus, Ethercat, etc. for digital communication (accessory) IOT Cloud connectivity for online monitoring (accessory, in preparation) IN750 XT adapters, tubing, and fluid for Ai 100L glass reactors P/N LZM 088 x 2; 2m insulated tubing P/N EOV 207 x 2; M30 male to 3/4" NPT male P/N LZB 231 x 5; KRYO 70A (-70C to 220C)- 10L IN750 XT adapters, tubing, and fluid for Ai 100L stainless steel reactors (no fluid) P/N LZM 088 x 2; 2m insulated tubing P/N UD 663 x 2; M38 female to M30 male adapter P/N EOV 224x 2; M38 male to 1” NPT male P/N LZB 231 x 4; KRYO 70A (-70C to 220C)- 10L
